Specification

Model	3E1	3E2	4E1	4E2	4E2C.P.R
Bore No.	8A
Port size	PT(Rc) 1/4
No. of port	3		5
No. of position	2				3
Medium	Air
Operating pressure range	0.2~0.7 MPa				0.3~0.7 MPa
Operating pressure(LP)	0~0.7 MPa
Extemal pilot pressure(LP)	0.2~0.7 MPa				0.3~0.7 MPa
Proof pressure	1 MPa
Effective orifice	18 mm²				16 mm²
Ambient temperature	-5 ~ +50℃ (No freezing)
Response time	30 ms				40 ms
Voltage	AC110V, 220V(50/60)Hz, DC24V
Power consumption	AC=6/4.9VA DC=2.5W
Avaiable voltage range	±10%
Insulation class	F class
Weight(g)	203	296	184	292	338

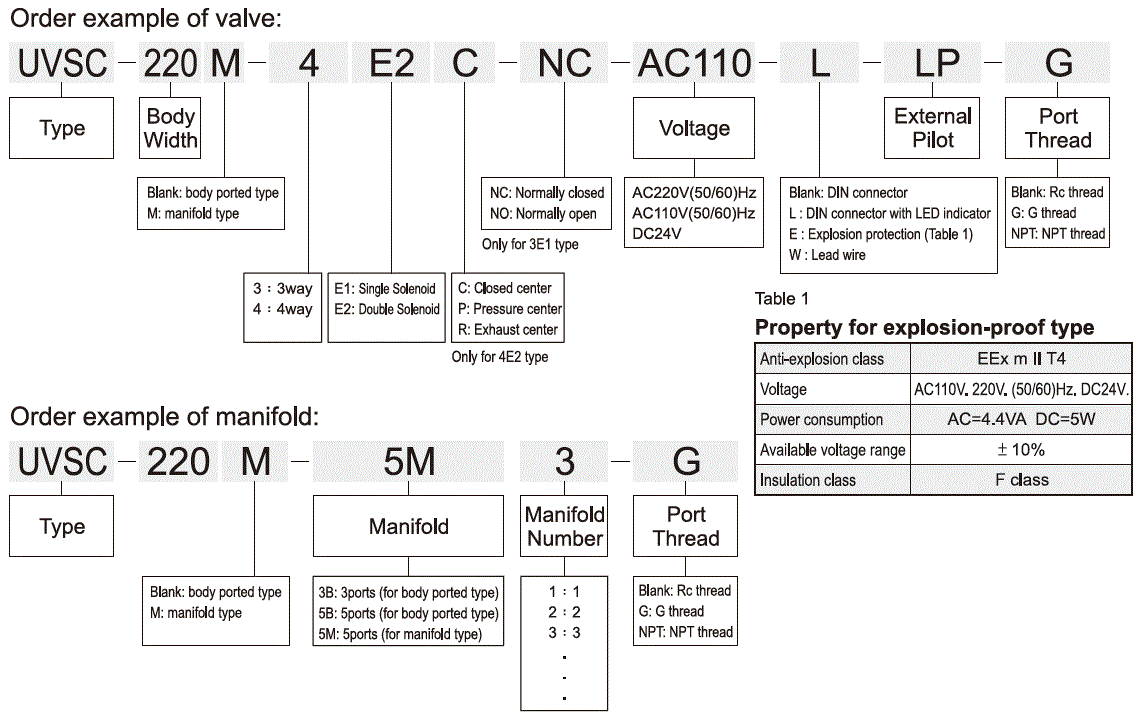

How to order
