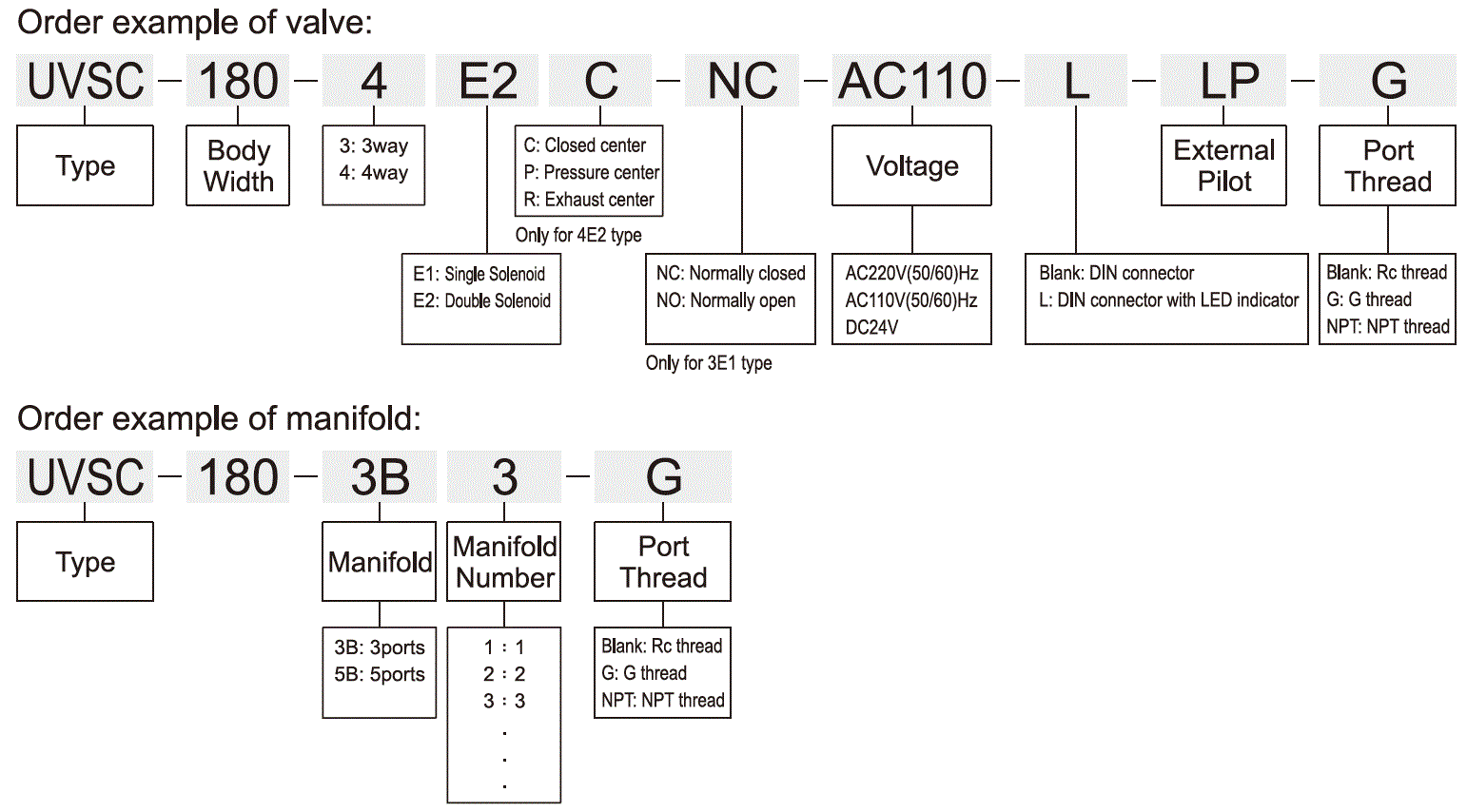

Model | 3E1 | 3E2 | 4E1 | 4E2 | 4E2C.P.R |
Bore No. | 6A | ||||
Port size | PT(Rc) 1/8 | ||||
No. of port | 3 | 5 | |||
No. of position | 2 | 3 | |||
Medium | Air | ||||
Operating pressure range | 0.15~0.8 MPa | 0.2~0.7 MPa | |||
Operating pressure(LP) | 0~0.8 MPa | 0~0.7 MPa | |||
Extemal pilot pressure(LP) | 0.15~0.8 MPa | 0.2~0.7 MPa | |||
Proof pressure | 1 MPa | ||||
Effective orifice | 12 mm² | 9 mm² | |||
Ambient temperature | -5 ~ +50℃ (No freezing) | ||||
Response time | 30 ms | ||||
Voltage | AC110V, 220V(50/60)Hz, DC24V | ||||
Power consumption | AC=3.7/3.1VA DC=2.9W | ||||
Avaiable voltage range | ±10% | ||||
Insulation class | F class | ||||
Weight(g) | 120 | 172 | 124 | 176 | 190 |
