Specification

Model	UAR403
Bore No.	8A	10A	15A
Port size	PT(Rc) 1/4	PT(Rc) 3/8	PT(Rc) 1/2
Medium	Air
Max. Operating pressure	1 MPa
Proof pressure	1.5 MPa
Regulated pressure range	0.1~0.85 MPa
Ambient temperature	-5 ~ +60℃ (No freezing)
Attachment	Pressure gauge(PG-20)，bracket
Weight	450g

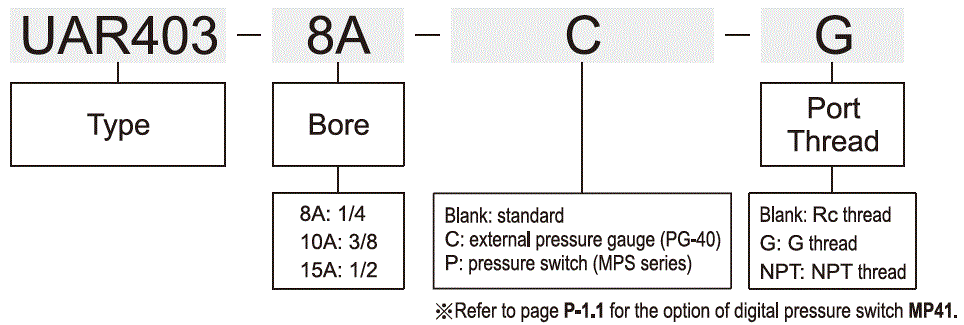

How to order
