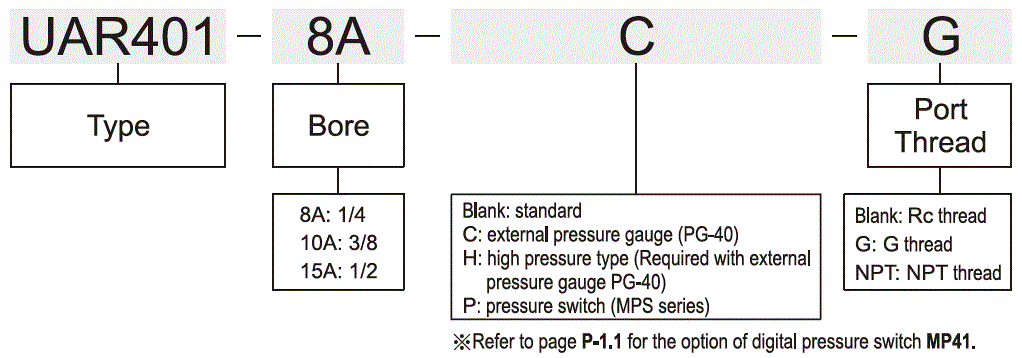

Model | UAR401 | ||
Bore No. | 8A | 10A | 15A |
Port size | PT(Rc) 1/4 | PT(Rc) 3/8 | PT(Rc) 1/2 |
Medium | Air | ||
Max. Operating pressure | 1.5 MPa | ||
Proof pressure | 2.0 MPa | ||
Regulated pressure range | Standard type : 0.1~0.85 MPa | ||
High pressure type : 0.1~1.5 MPa | |||
Ambient temperature | -5 ~ +60℃ (No freezing) | ||
Attachment | Pressure gauge(PG-20),bracket | ||
Weight | 450g |
