Specification
| Model | UAR302 | ||
| Bore No. | 8A | 10A | 15A |
| Port size | PT(Rc) 1/4 | PT(Rc) 3/8 | PT(Rc) 1/2 |
| Medium | Air | ||
| Operating pressure range | 0.05~1 MPa | ||
| Proof pressure | 1.5 MPa | ||
| Effective orifice | 32 mm² | 34 mm² | |
| Regulated pressure range | 0.05~0.85 MPa | ||
| Ambient temperature | -5 ~ +60℃ (No freezing) | ||
| Attachment | Pressure gauge(PG-20)，bracket | ||
| Weight | 270g | ||

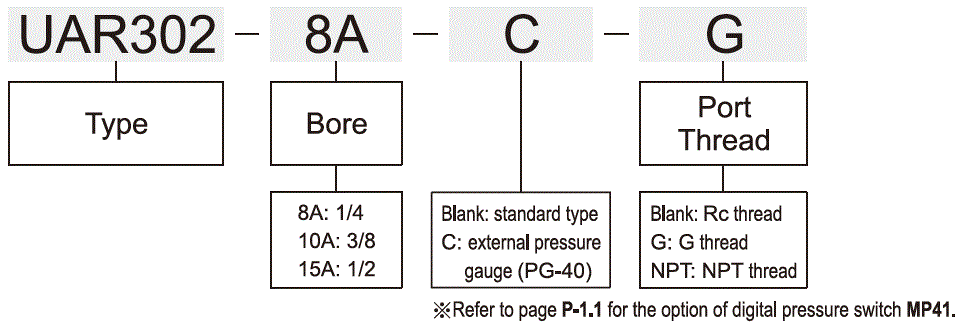

How to order
 |
