Specification
| Model | UAFR401 | ||
| Bore No. | 8A | 10A | 15A |
| Port size | PT(Rc) 1/4 | PT(Rc) 3/8 | PT(Rc) 1/2 |
| Medium | Air | ||
| Operating pressure range | 0.05~1.5 MPa | ||
| Proof pressure | 2.0 MPa | ||
| Regulated pressure range | Standard type : 0.1~0.85 MPa | ||
| High pressure type : 0.1~1.5 MPa | |||
| Ambient temperature | -5 ~ +60℃ (No freezing) | ||
| Filter element | Standard : 40μm Option : 5μm | ||
| Attachment | Pressure gauge(PG-20)，bracket | ||
| Weight | 800g | ||
● Standard unit contains semi-auto-drain function when operating pressure below 0.05MPa。
● Choose auto-drain FMRF300，the pressure range is 0.15~1 MPa。

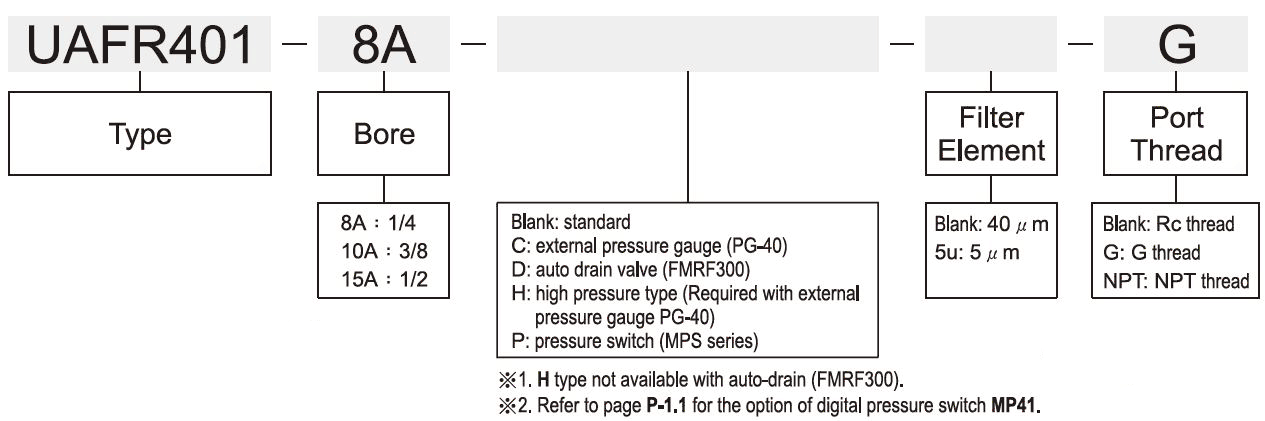

How to order
 |
