Specification
| Model | UAFR300L | |
| Bore No. | 8A | 10A |
| Port size | PT(Rc) 1/4 | PT(Rc) 3/8 |
| Medium | Air | |
| Operating pressure range | 0.05 ~ 1 MPa | |
| Proof pressure | 1.5 MPa | |
| Effective orifice | 32 mm² | 34 mm² |
| Regulated pressure range | 0.05~0.85 MPa | |
| Ambient temperature | -5 ~ +60℃ (No freezing) | |
| Filter element | Standard : 5μm Option : 40μm | |
| Attachment | Pressure gauge(PG-40)，bracket | |
| Weight | 452g | |
● Standard unit contains semi-auto-drain function when operating pressure below 0.05MPa。
● Choose auto-drain FMRF300，the pressure range is 0.15~1 MPa。
● Longer case for adapting high efficient auto drain valve。

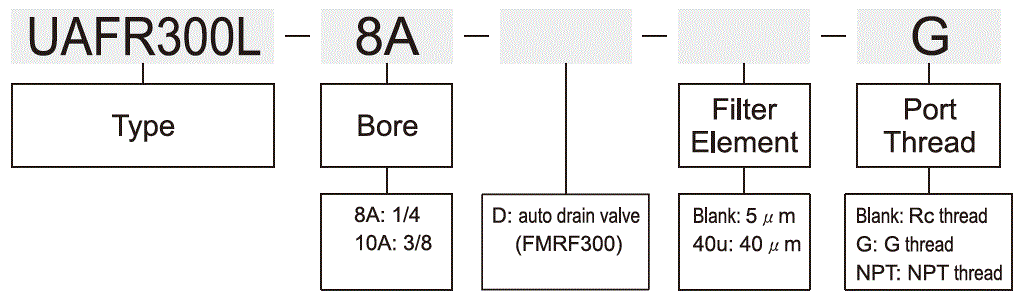

How to order
 |
