Specification
| Model | UACP302 | ||
| Bore No. | 8A | 10A | 15A |
| Port size | PT(Rc) 1/4 | PT(Rc) 3/8 | PT(Rc) 1/2 |
| Medium | Air | ||
| Operating pressure range | 0.05~1 MPa | ||
| Proof pressure | 1.5 MPa | ||
| Regulated pressure range | 0.05~0.85 MPa | ||
| Ambient temperature | -5 ~ +60℃ (No freezing) | ||
| Filter element | Standard : 5μm Option : 40μm | ||
| Lubricating oil capacity | 65cc | ||
| Min. flow for oil drip | 50 ℓ/min | 60 ℓ/min | |
| Recommended Iubricating oil | Turbine oil ISO-VG32 | ||
| Attachment | Pressure gauge(PG-20)，T-type bracket | ||
| Weight | 845g | ||
● Standard unit contains semi-auto-drain function when operating pressure below 0.05MPa。
● Choose auto-drain FMRF300，the pressure range is 0.15~1 MPa。

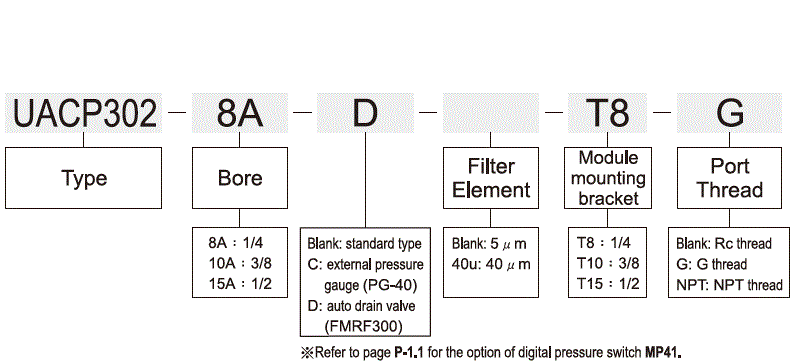

How to order
 |
