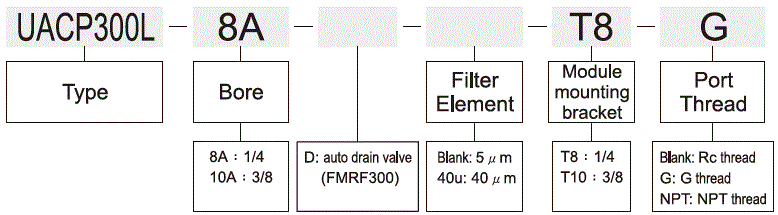

Model | UACP300L | |
Bore No. | 8A | 10A |
Port size | PT(Rc) 1/4 | PT(Rc) 3/8 |
Medium | Air | |
Operating pressure range | 0.05~1 MPa | |
Proof pressure | 1.5 MPa | |
Regulated pressure range | 0.05~0.85 MPa | |
Ambient temperature | -5 ~ +60℃ (No freezing) | |
Filter element | Standard : 5μm Option : 40μm | |
Lubricating oil capacity | 65cc | |
Min. flow for oil drip | 50 ℓ/min | 60 ℓ/min |
Recommended Iubricating oil | Turbine oil ISO-VG32 | |
Attachment | Pressure gauge(PG-40),T-type bracket | |
Weight | 739g |
● Standard unit contains semi-auto-drain function when operating pressure below 0.05MPa。
● Choose auto-drain FMRF300,the pressure range is 0.15~1 MPa。
● Longer case for adapting high efficient auto drain valve。
