Specification

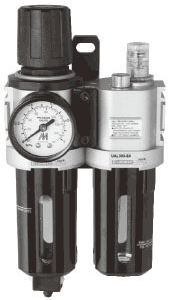

Model	UACP300
Bore No.	8A	10A
Port size	PT(Rc) 1/4	PT(Rc) 3/8
Medium	Air
Operating pressure range	0.05~1 MPa
Proof pressure	1.5 MPa
Regulated pressure range	0.05~0.85 MPa
Ambient temperature	-5 ~ +60℃ (No freezing)
Filter element	Standard : 5μm   Option : 40μm
Lubricating oil capacity	55cc
Min. flow for oil drip	50 ℓ/min	60 ℓ/min
Recommended Iubricating oil	Turbine oil ISO-VG32
Attachment	Pressure gauge(PG-40)，T-type bracket
Weight	724g

● Standard unit contains semi-auto-drain function when operating pressure below 0.05MPa。
