● These swing clamps are used when it is required to keep the fixture workpiece area free of straps and
clamping components for unrestricted workpiece loading and unloading.

● This hydraulic clamping element is a pull type cylinder, There are five standard sizes, and for each size
two versions of standard clamping arms, mounting of these clamping arms at any angle within 360° .



Note：

● Please don't exceed 1.5 times of th original length, if it is necessary to increase the length of the
clamping arm.

● Suggested to install a flow control valve protect cylinder barrel and internal components against fretting
wear.



Specification

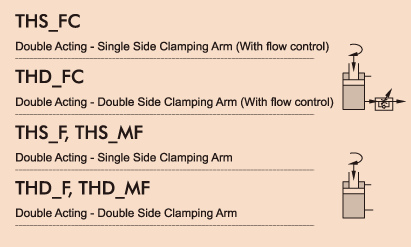

Type	THS_FC / THD_FC / THS_MF / THD_MF	THS_F / THD_F
Bore sizes of cylinder (mm)	Ø 25, Ø 32, Ø 40, Ø 50, Ø 63	Ø 25, Ø 32, Ø 40, Ø 50
Operation	Double acting
Power fluid	Filtered oil
Max. Pressure (MPa)	10(100kgf/cm²)
The range of pressure (MPa)	0.5 ~ 7(5 ~ 70kgf/cm²)
Material of cylinder barrel	Carbon steel
Standard angle of rotation	90±2°(Angles of 0°,45° and 60° are optional)
Rotating direction	Clockwise or counter clockwise

How to order
