● Treaded-body single acting clamp cylinder is small in size and can be applied to a clamping device,
especially in small-size machinery or confined space.

● Light, beautiful and firm in design.



Specification

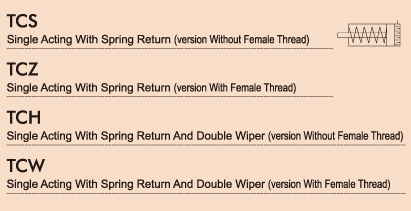

Type	TCS　　TCZ	TCH　　TCW
Bore sizes of cylinder (mm)	Ø 12, Ø 16, Ø 20, Ø 25
Power fluid	Filtered oil
Material	Carbon steel
The range of pressure (MPa)	10~50(100~500kgf/cm²)
The range of temperature (℃)	-10 ~ +60

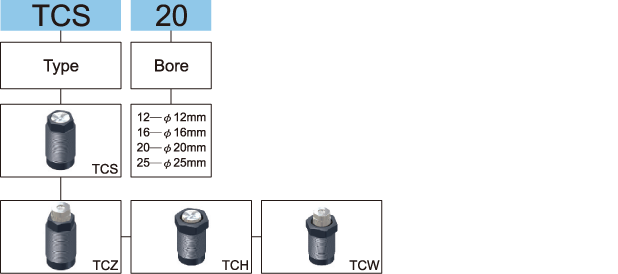

How to order
