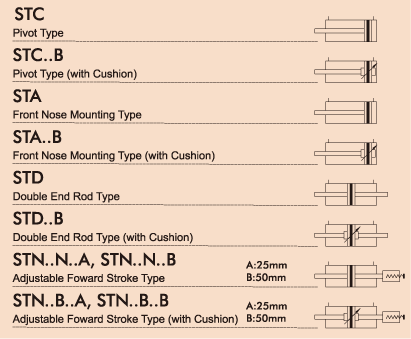

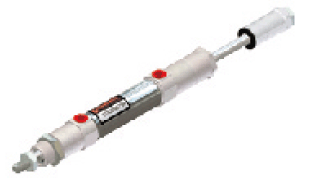

● ST series cylinders according to ISO 6432 (Bore sizes Ø 20 ~ Ø 25)

● The series cylinders use for long stroke and high speed.



Specification

Bore sizes of cylinder (mm)	Ø 20	Ø 25	Ø 32	Ø 40
Standard stroke (mm)	25, 50, 75, 100, 125, 150, 175, 200, 250, 300
The range of stroke (mm)	Max. 800
Power fluid	Filtered air
Material of cylinder barrel	Stainless steel
The range of pressure (MPa)	0.1~1.03
The range of temperature (℃)	-10～+60

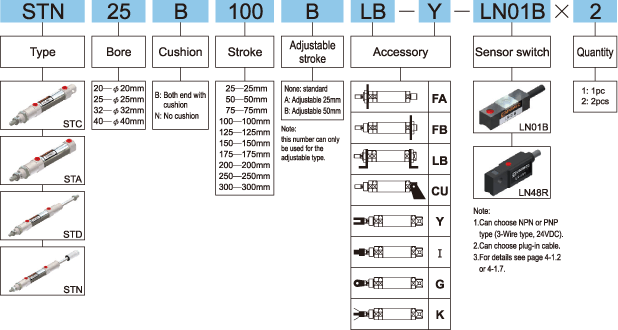

How to order
