●The body is manufactured in anodized aluminium alloy, and has been designed looking at the harmonious
aesthetic development.
●Pinion and rack produced from carbon steel reduces backlash within the mechanism.
●Rotation adjustment screw.
Specification

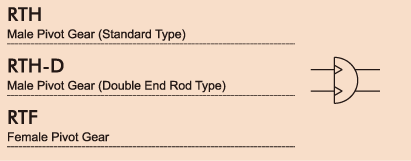

| Type | RTF RTH RTH-D | ||
| Bore sizes (mm) | Ø40 | Ø63 | Ø80 |
| Standard rotation | 90±5°, 180±5° | ||
| Rotating shaft dia. (mm) | Ø16 | Ø24 | Ø28 |
| Initial position of slot (mm) | See dimensional feature | ||
| Power fluid | Filtered air with or without lubrication | ||
| The range of pressure (MPa) | 0.13 ~ 0.7 | ||
| The range of temperature (℃) | -10 ~ +60 | ||
| Max. allowable axial thrust (kg) | 10 | 12 | 20 |
| Cushion angle | 74° | 75° | 80° |

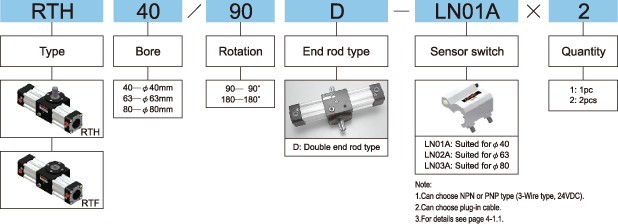

How to order
 |
