Specification
| Model | MPS-6A | MPS-6A-R |
| Fitting method | PT 1/8 (for pipe-thread fitting) |
O-ring:S4 (for O-ring fitting) |
| Ambient temperature | -5 ~ +60℃ (No freezing) | |
| Operating pressure range | 0.8 MPa | |
| Test pressure | 1 MPa | |
| Pressure setting range | 0.1 ~ 0.7 MPa | |
| Operation output | Normal open ON (Red led lighting up) above value |
|
| Sensor switch |
RCE Reed switch/Normal open Voltage range:5~220V DC/AC Nax. Current: 50mA |
|
| Weight | 185g | 189g |

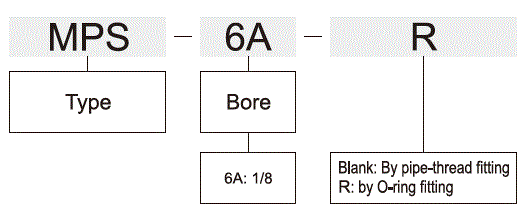

How to order
 |
