Specification
| Wiring method | 2-Wire type | 3-Wire type | |
| Switching logic | N.O | Solid state output, N.O | |
| Sensor type | Reed switch | NPN Current sinking | PNP Current sinking |
| Operating voltage | 5~120V DC/AC | 5~30V DC | |
| Switching current | 100mA Max. | 200mA Max. | |
| Contact rating | 10W Max. | 6W Max. | |
| Current consumption | - | OFF:7mA(24V) ON:20mA(24V) Max. | |
| Voltage drop | 2.5V Max. | 0.5V@200mA Max. | |
| Operating frequency | <2ms | <1ms | |
| Cable | 2.8,2C,PVC | 2.8,3C,PVC | |
| Indicator | Red LED | Red LED | Green LED |
| Protection grade | IP-67 | ||
| Operating Temp. | -10℃ ~ 70℃ | ||
| Protection circuit | None | Power Source Reverse polarity; Surge suppression |
|

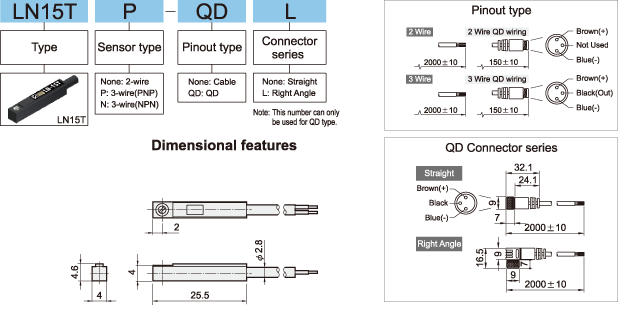

How to order
 |
