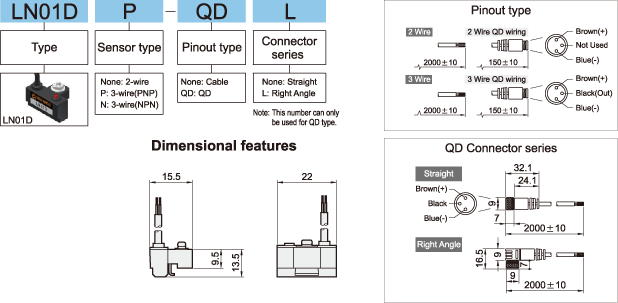

Wiring method | 2-Wire type | 3-Wire type | |
Switching logic | N.O | Solid state output, N.O | |
Sensor type | Reed switch | NPN Current sinking | PNP Current sinking |
Operating voltage | 5~240V DC/AC | 5~30V DC | |
Switching current | 100mA Max. | 200mA Max. | |
Contact rating | 10W Max. | 6W Max. | |
Current consumption | - | OFF:7mA(24V) ON:20mA(24V) Max. | |
Voltage drop | 3V Max. | 0.5V@200mA Max. | |
Operating frequency | <2ms | <1ms | |
Cable | 3.3,2C,PVC | 3.3,3C,PVC | |
Indicator | Red LED | Red LED | Green LED |
Protection grade | IP-67 | ||
Operating Temp. | -10℃ ~ 70℃ | ||
Protection circuit | None | Power Source Reverse polarity; Surge suppression |
