●Piston with magnet is standard accessory in the adjustable stroke cylinders.
●The rod cover and End cap, molded by rolling and riveting, are of high concentricity and stability.

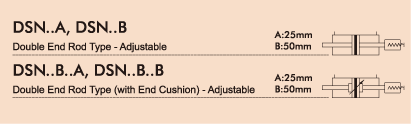

●Adjustable stroke A:25mm B:50mm
Bore sizes of cylinder (mm) | Ø 12 | Ø 16 | Ø 20 | Ø 25 | Ø 32 | Ø 40 |
Standard stroke (mm) | 25, 50, 75, 100, 125,150,175, 200, 250, 300 | |||||
The range of adjustable stroke (mm) | Max. 100 | |||||
Power fluid | Filtered air with or without lubrication | |||||
Material of cylinder barrel | Stainless steel | |||||
The range of pressure (MPa) | 01.~1.03 | |||||
The range of temperature (℃) | - 10 ~ + 60 |
