● Piston with magnet is standard accessory in the DO series cylinder.



Specification

Bore sizes of cylinder (mm)	Ø 20	Ø 32
Power fluid	Fitered oil
Material of cylinder barrel	Anodised aluminium alloy	Stainless steel
The range of pressure (MPa)	3.5(35kgf/cm²)
Proof pressure (MPa)	5(50kgf/cm²)
The range of speed (mm/sec)	0.5~300
The range of temperature (℃)	-10 ~ +60

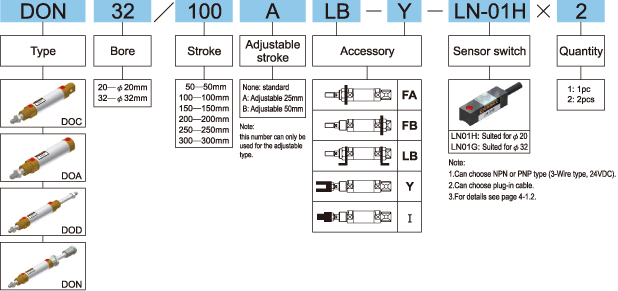

How to order
