● Magnetic piston. (optional)

● Concealed self-lubricating bearing for smooth operating.

● Attached with double guide rod for heavy load.

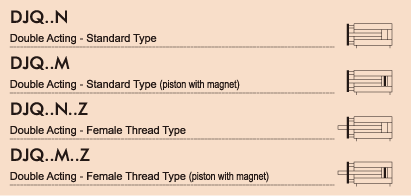

● Two types of simple design available.

● Short in design, space-saving.



Specification

Type	DJQ	DJQ-Z
Bore sizes of cylinder (mm)	Ø 20 ~ Ø 63	Ø 32 ~ Ø 63
Standard stroke (mm)	10,20,30,40,50,60,70,80
Power fluid	Filtered air with or without lubrication
The range of pressure (MPa)	0.1 ~ 1.03
The range of temperature (℃)	-10 ~ +60

How to order
