● Hydro-cylinders of this series can be added with cushions.
Specification
| Bore sizes of cylinder (mm) | Ø 40 | Ø 50 | Ø 63 | Ø 80 | Ø 100 | Ø 125 | Ø 150 |
| Standard stroke (mm) | 50, 100, 150, 200, 250, 300, 350, 400, 450, 500 | ||||||
| The range of stroke (mm) | Max. 1500 | Max. 1900 | |||||
| Power fluid | Fitered oil | ||||||
| Material of cylinder barrel | Carbon steel STKM 13C |
||||||
| The range of pressure (MPa) | 14(140kgf/cm²) | ||||||
| The range of temperature (℃) | -10 ~ +60 | ||||||

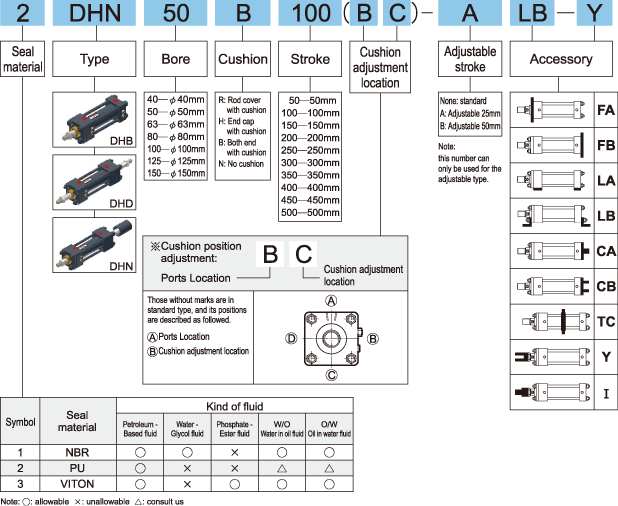

How to order
 |
