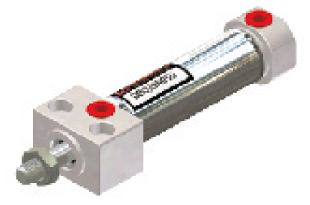

● Piston with magnet is standard accessory in the DB series cylinders.

● The rod cover and End cap, molded by rolling and riveting, are of high concentricity and stability.

● Double-acting cylinders Ø 16~Ø 40 can be added with end cushion.



Specification

Bore sizes of cylinder (mm)	Ø 16	Ø 20	Ø 25	Ø 32	Ø 40
Type of operation	Double Acting
Power fluid	Filtered air with or without lubrication
Material of cylinder barrel	Stainless steel
The range of pressure (MPa)	0.2~0.7
Proof pressure (MPa)	1.03
The range of temperature (℃)	0~70
The range of speed (mm / sec)	50~500
Port size	M5	G 1/8			G 1/4

How to order
