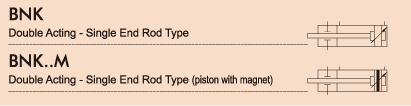

● This series (of 6 specifications) can be applied to the retention of state in stroke range.
● Two-way brake with sensors that can be applied to the retention of a given position.
● Piston rod is made of high-strength wearproof bearing steel.
Specification
| Bore sizes of cylinder (mm) | Ø 32 | Ø 40 | Ø 50 | Ø 63 | Ø 80 | Ø 100 | |
| Standard stroke (mm) | 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500 | ||||||
| The range of stroke (mm) | Stroke till 1000mm by request | ||||||
| Power fluid | Filtered air with or without lubrication | ||||||
| Material of cylinder barrel | Aluminium extrusion, Anodised 20 microns | ||||||
| The range of pressure (MPa) | 0.4~0.65 | ||||||
| Min. working pressure (MPa) | 0.4 | 0.4 | 0.35 | 0.35 | 0.3 | 0.3 | |
| Locking model | Secure locking of piston rod in any position | ||||||
| Lock retention forces N (kgf) (maximum design static load-horizontal installation site) |
52 | 88 | 137 | 206 | 310 | 471 | |
| Lock braking precision (mm) | V(mm/sec) | (Horizontal axis)Operate with a load ratio of 70% or less, (Vertical axis)Operate with a load ratio of 35% or less. |
|||||
| 50(mm/sec) | ±0.7 | ±0.8 | ±0.9 | ±0.8 | ±0.8 | ±1 | |
| 100(mm/sec) | ±1 | ±1 | ±1 | ±1 | ±1.2 | ±1.4 | |
| 200(mm/sec) | ±1.3 | ±1.6 | ±1.4 | ±1.8 | ±2.1 | ±2.4 | |
| Allowable energy (max) J(N‧m) J(E=½mv²) |
0.84 | 1.41 | 2.2 | 3.31 | 4.98 | 7.57 | |
| The range of temperature (℃) | -10~+60 | ||||||

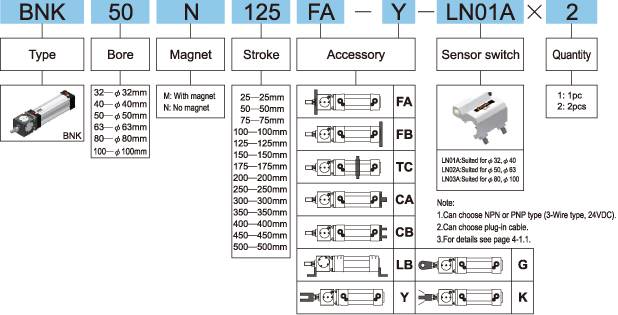

How to order
 |
