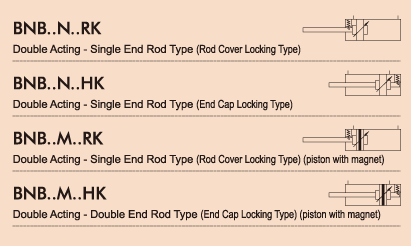

● This series (of two types and 6 specifications) can be applied to the retention of state in ends.



Specification

Bore sizes of cylinder (mm)	Ø 32	Ø 40	Ø 50	Ø 63	Ø 80	Ø 100
Standard stroke (mm)	25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400, 450, 500
The range of stroke (mm)	Stroke till 1000mm by request
Power fluid	Filtered air with or without lubrication
Material of cylinder barrel	Aluminium extrusion, Anodised 20 microns
The range of pressure (MPa)	0.3~1.03
Min. working pressure (MPa)	0.3
Holding force(Max.) N(kgf)	510(52)	860(88)	1275(130)	2060(210)	3335(340)	5100(520)
Backlash (mm)	±0.5mm
The range of temperature (℃)	-10~+60

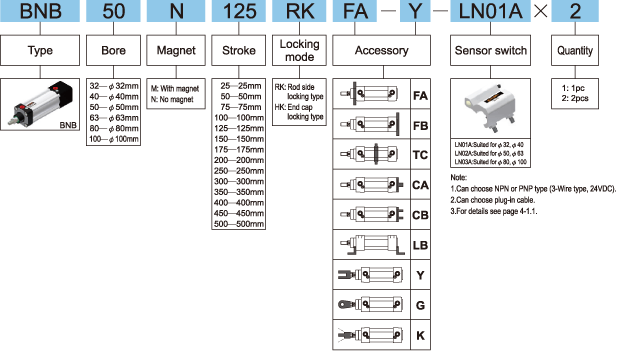

How to order
